  • Product Name

  • ATOMS Platform

  • Product Specifications

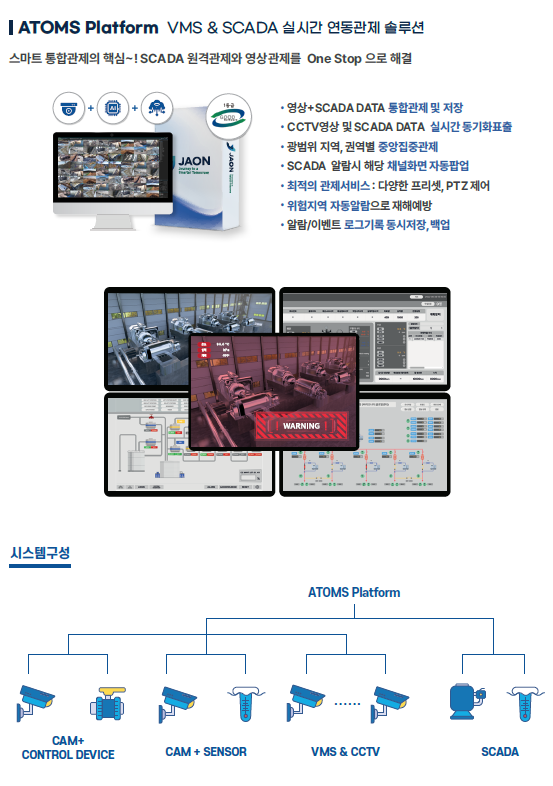

  • VMS & SCADA Real-Time Integrated Monitoring Solution

  • Product Features

  • - Integrated monitoring and storage of video and SCADA data
    - Real-time synchronized display of CCTV video and SCADA data
    - Centralized monitoring by wide-area regions and zones
    - Automatic pop-up display of related channels upon SCADA alarm activation
    - Optimized monitoring services with various presets and PTZ control
    - Accident prevention through automatic alarms in hazardous areas
    - Simultaneous storage and backup of alarm and event log records

  • Product Configuration

  • - ATOMS V1.0 Software
    - Channel License
    - User Licnse
    - Option. H/W package

  • Hardware Configuration

  • - Operating System: Microsoft® Windows Pro 10 64-bit or higher
    - CPU: Intel® Core i7™ 14700K or equivalent and above
    - RAM: 32GB or higher
    - Network: Ethernet, 1000Mbps or higher
    - VGA: NVIDIA RTX 3050 or equivalent and above
    - SSD: 512GB or higher
    - HDD: 1TB based on 30-day storage per channel

링크 및 다운로드

e-Catalog

상세정보

“All On-Site Information at a Glance, The Standard of Data-Converged Monitoring”



[Real-Time Data Integration]
Real-time integration of hundreds of CCTV video streams and equipment data such as temperature and pressure onto a single monitoring screen.



[Intelligent Pop-Up Alarm]
When sensor abnormalities are detected, the related video channel automatically pops up and flickers for immediate and intuitive recognition.



[Smart Integrated Recording]
Simultaneous storage of video footage and sensor data enables rapid and accurate analysis of accident causes.
